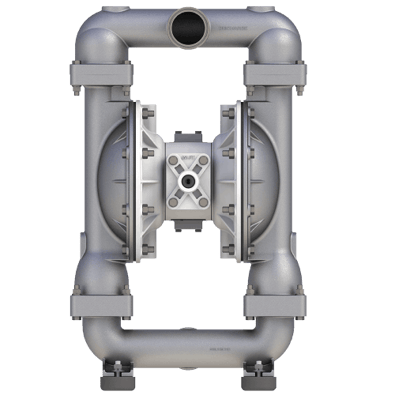

T20 2" (50 mm) Metallic AODD – Ball Valve Pump

    SANDPIPER 2" BOLTED T-SERIES FDA-COMPLIANT FOOD PROCESSING AODD PUMP

    The SANDPIPER T20 2" FDA-compliant and EC 1935-certified ball valve pump is ideally suited for a variety of food and beverage processing, pharmaceutical and cosmetic industry applications.

    Part of the SANDPIPER T-Series family of FDA pumps, it provides a bolted, leak-resistant design.

    This AODD pump features:

    • Compliance with food-contacting materials requirements
      • 316 stainless steel wetted components
      • FDA Santoprene, FDA nitrile and PTFE diaphragms, check balls and seats
    • Bolted construction for more robust, leak-free performance than typical clamped-construction food pumps
    • Best-in-class maximum flow rate of 198 gpm (750 lpm)
    • Best-in-class air efficiency–uses up to 59% less air than competitive models
    • 2½" tri-clamp connections
    • Option of either stainless steel or white epoxy-coated aluminum non-wetted components for compatibility with washdown chemicals

    All SANDPIPER T-Series FDA-compliant diaphragm pumps feature:

    • An externally serviceable air distribution system: When dirty air enters an AODD pump, it will require frequent servicing of the air distribution system. SANDPIPER is the only AODD pump manufacturer offering an externally serviceable air distribution system (ESADS+), which allows complete access to the main air and pilot valves without removing the pump from service. Repair or clean in five minutes (versus 55 minutes for competitors), reducing your downtime by as much as 90%.
    • A proven, simple design: SANDPIPER’S original air distribution system (ADS) is fully interchangeable, repairable and inline-serviceable. Other manufacturers make frequent changes to their ADS designs, creating issues with interchangeability, obsolete inventory and increased cost of ownership.

    Performance Guarantees

    Chemical Compatibility Guide

    To determine chemical compatibility with this pump, please refer to our Chemical Compatibility Guide.

    FDA Compliant EC1935 Goblet Fork ISO Logo CE logo

    Specifications

    Port Size 2½" Tri-Clamp
    Capacity 0 to 200 gpm (758 lpm)
    Air Distribution Valve No-lube, no-stall design
    Solids-Handling Up to ¼" (6 mm)
    Heads Up To 125 psi or 289 ft of water (8.6 bar or 88 meters)
    Displacement/Stroke .42 gallons (1.59 liters)
    Max Operating Pressure 125 psi (8.6 bar)
    Shipping Weight Stainless Steel: 114 lbs (52 kg)

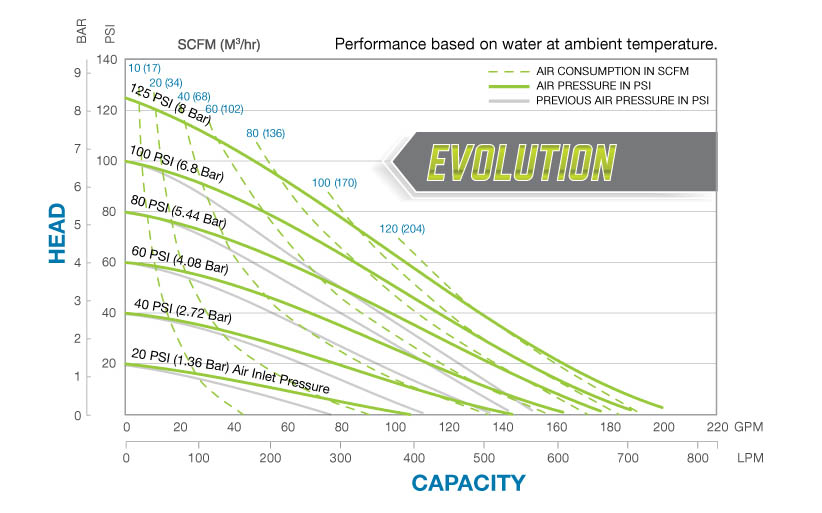

    Performance

    S20-metallic-tri-clamp-fda-2



    Videos

    T20 CAD File


    SANDPIPER can provide you with a CAD file to save time and improve the quality of your final design, as well as reduce measurement and documentation packet errors. Contact us today to request yours.
