HDF3 and HDF4 Metallic 3" (80 mm) and 4" (100 mm) AODD – Flap Valve Pumps

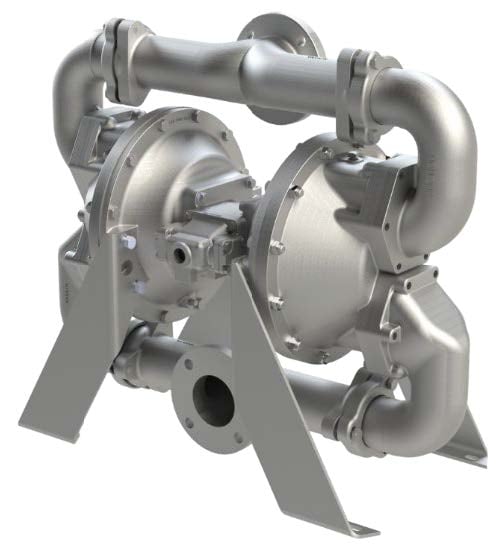

    SANDPIPER Heavy-Duty Flap Valve AODD Pumps

    SANDPIPER has your pumping solution for fluids containing up to 3"/4" line-size solids!

    The SANDPIPER HDF3 and HDF4 heavy-duty flap valve pumps have a proven design that solves the most common challenges in sump applications, mine dewatering and any liquid application involving solids.

    These air-operated double-diaphragm (AODD) pumps are recommended for abrasive slurries, suspended and non-suspended solids and up to 3"/4" line-size solids. The heavy-duty flap valve pumps are configured with bottom discharge porting to provide superior suction lift and prevent settling solids from shortening pump life.

    Designed for Tough Applications and Maximum Efficiency

    HDF3 and HDF4 pumps are thick wall-constructed of sand-casted aluminum, cast iron and stainless steel with elastomer and TPE (thermoplastic elastomer) diaphragms and check valves.

    HDF3 and HDF4 pump designs have recently been optimized for performance as part of the SANDPIPER Evolution portfolio improvement. These efficient pumps experienced a 19% flow rate increase, with a new maximum flow rate of up to 310 gpm (1,173 lpm).

    Key Advantages

    • Line-size solids handling
      Flap valve versus ball valve pumps
      • Flap check valve pumps: A large flow area allows up to 3"/4" line-size solids to pass directly through the pump. Additionally, bottom discharge porting allows settling solids to pass through the pump and not settle inside the pumping chamber, preventing damage and premature wear.
      • Ball check valve pumps: Much less flow area for solids to pass through. Large solids get stuck in the suction manifold and small solids can settle in the outer chamber–both issues affect pump performance.
    • Superior suction lift
      Flap valve versus ball valve pumps
      • Suction lift advantage: SANDPIPER’s flap valve design provides superior suction lift capabilities up to 24 ft in water. Diaphragm placement and flap valve seating combine to create a unit capable of suction lifts 15% greater than ball valve pumps.
      • Dry prime: These capabilities are from a dry prime, making the SANDPIPER flap valve pump an excellent solution for situations where limited choices are available for pump priming.
    ATEX CE logo ABS logo ISO_Logo EAC SP Evolution logo

    Specifications

    Port Size
    HDF3
    HDF4

    3" 150# ANSI Flange
    4" 150# ANSI Flange
    Capacity
    Aluminum
    Cast Iron

    0 to 310 gpm (1173 lpm)
    0 to 303 gpm (1147 lpm)
    Air Distribution Valve No-lube, no-stall design
    Solids-Handling Up to nearly 3" (75 mm)
    Heads Up To 125 psi or 289 ft. of water (8.6 bar or 88 meters)
    Displacement/Stroke
    Aluminum
    Cast Iron

    1.60 gallons (6.08 liters)
    1.15 gallons (4.37 liters)
    Max Operating Pressure 125 psi (8.6 bar)
    Shipping Weight
    Aluminum
    Cast Iron

    245 lbs (110 kg)
    390 lbs (176 kg)

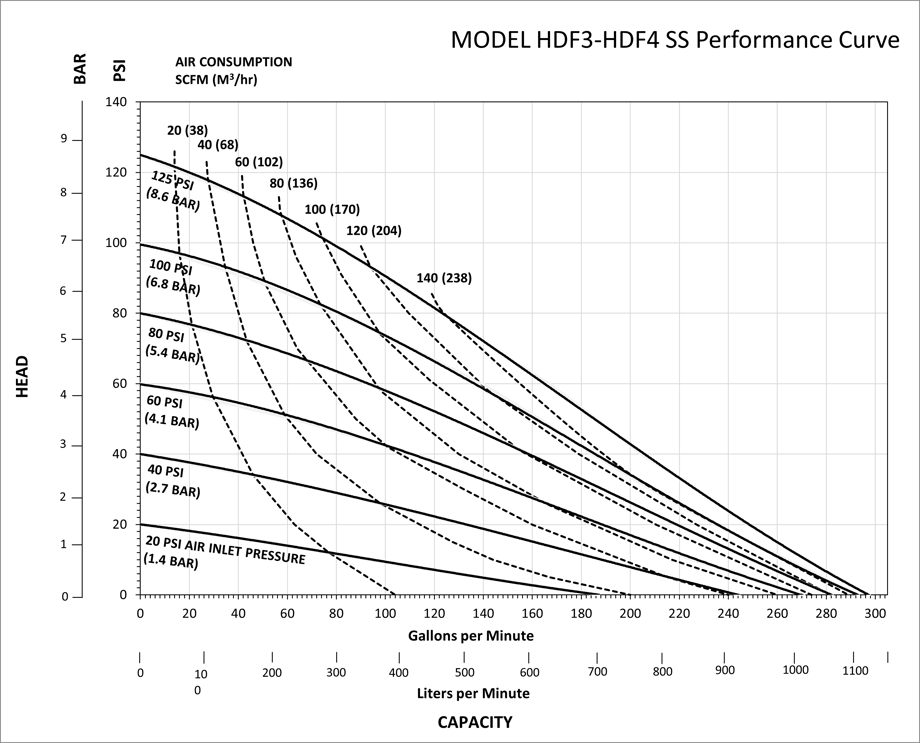

    Performance

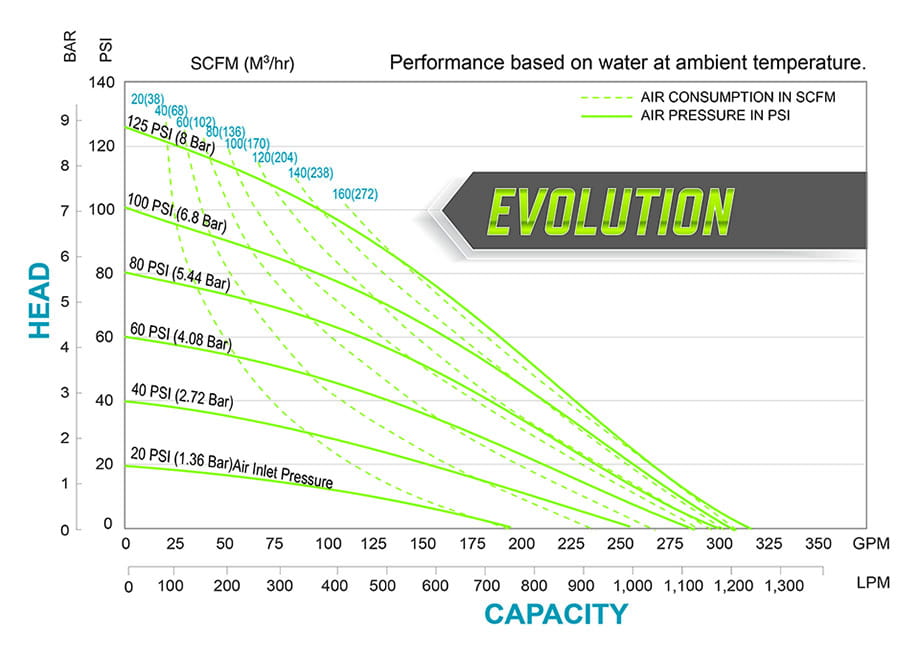

    3" HDF3 & 4" HDF4 Aluminum

    HDF3-HDF4-Aluminum-Heavy-Duty-Flap-Valve

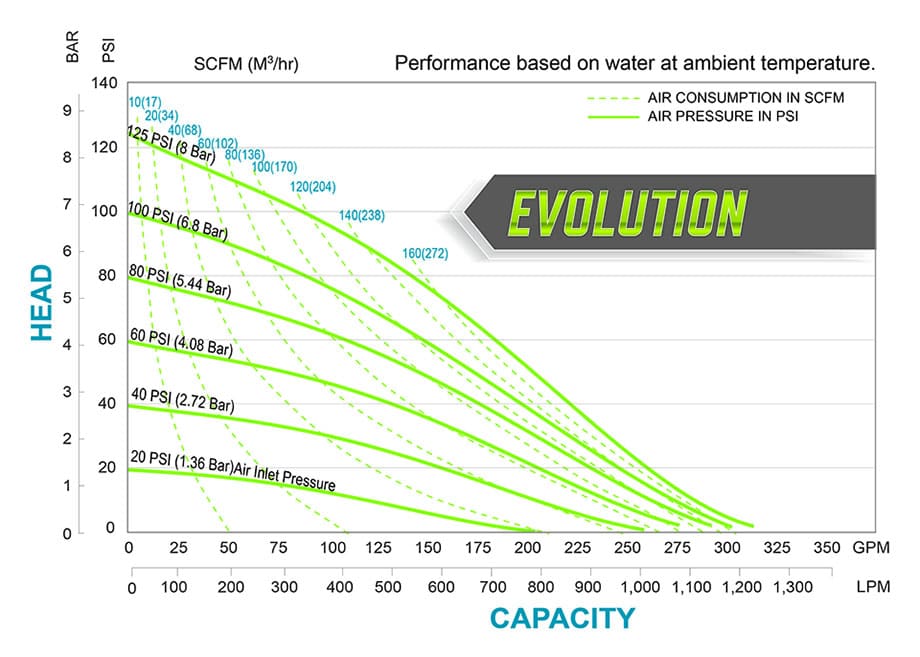

    3" HDF3 & 4" HDF4 Cast Iron

    HDF3-HDF4-Cast-Iron-Heavy-Duty-Flap-Valve



    Videos

    HDF3 & HDF4 CAD Files


    SANDPIPER can provide you with a CAD file to save time and improve the quality of your final design, as well as reduce measurement and documentation packet errors. Contact us today to request yours.
