SPB20 2” (50 MM) AODD– HEAVY DUTY FLAP VALVE PUMP

    THE BEAST HEAVY DUTY, CLOG RESISTANT FLAP VALVE PUMP

    Looping-HDF_no-bkgd



    Your solution for pumping the broadest range of fluids containing solids and chemicals

    • Small Solids
    • Packable Materials
    • Large Solids
    • Viscous Fluids
    • Abrasive Fluids
    • Harsh Chemicals

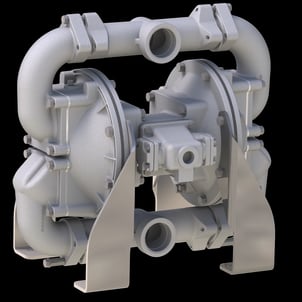

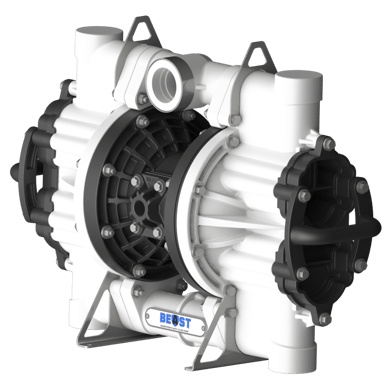

    SPB20 2” METALLIC AODD pumpHD20F Beast AODD pump



    Talk to an Expert

    Performance Guarantees

    Chemical Compatibility Guide

    To determine chemical compatibility with this pump, please refer to our Chemical Compatibility Guide.

    CE logo ABS logo ISO Logo fdalogo bw0322 EAC

    Performance & Specs

    SPB20 Metallic

    Port Size  2" NPT
    Capacity 0 to 208 gpm (787 lpm)
    Air Distribution Valve No-lube, no-stall design
    Solids-Handling Up to 2" (50 mm)
    Heads Up To 125 psi or 289 ft of water (8.6 bar or 88 meters)
    Displacement/Stroke 0.47 gallons (1.8 liters)
    Max Operating Pressure 125 psi (8.6 bar)

    Shipping Weight
    Aluminum
    Cast Iron
    Stainless Steel


    86 lbs (39 kg)
    168 lbs (76 kg)
    168 lbs (76 kg)

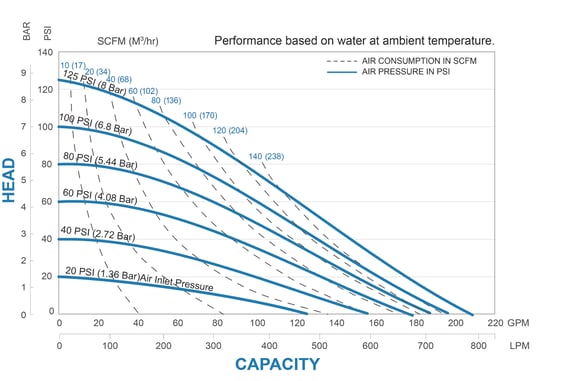

    SPB20 Metallic Performance Chart



    Performance & Specs

    SPB20 Non-Metallic

    Port Size 2" NM NPT (Internal)
    2" BSP (Tapered)
    2" ANSI
    2" DIN Flange
    Capacity 0 to 170 gpm (644 lpm)
    Air Distribution Valve No-lube, no-stall design
    Solids-Handling Up to 1.8" (46 mm)
    Heads Up To 100 psi or 231 ft. of water (7 bar or 70 meters)
    Displacement/Stroke .50 gallons (1.9 liters)
    Max Operating Pressure 100 psi (7 bar)
    Shipping Weight Pump: 58 lbs (27 kg)
    Shipping: 70 lbs (31.7 kg)

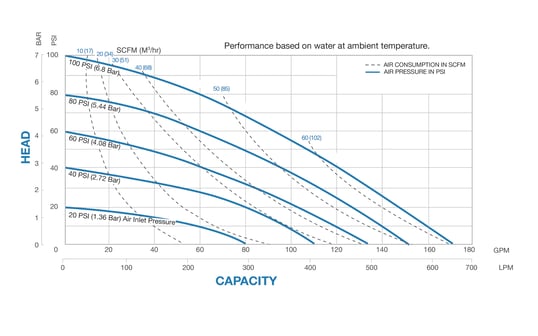

    SPB20 non-metallic performance chart



    SPB20 CAD File


    SANDPIPER can provide you with a CAD file to save time and improve the quality of your final design, as well as reduce measurement and documentation packet errors. Contact us today to request yours.
