OIL & GAS

SANDPIPER AIR- AND NATURAL GAS-OPERATED DOUBLE-DIAPHRAGM PUMPS FUEL THE OIL AND GAS INDUSTRY

Traditional air-operated double-diaphragm (AODD) pumps are designed to be powered by compressed air only. As an alternate power source to air, oil and gas operators have opted to power their diaphragm pumps with easily accessible natural gas, eliminating the need for an air compressor.

The oil and gas industry application of AODD pumps driven by natural gas created a unique set of safety requirements that previously did not exist. In 2003, SANDPIPER recognized the need and partnered with the Canadian Standards Association (CSA®) to lead the development of the first-ever safety certification for gas-operated double-diaphragm (GODD) pumps.

CSA-certified GODD pumps are designed and tested to be powered by natural gas when installed, according to the certification and local requirements in the below-noted applications:

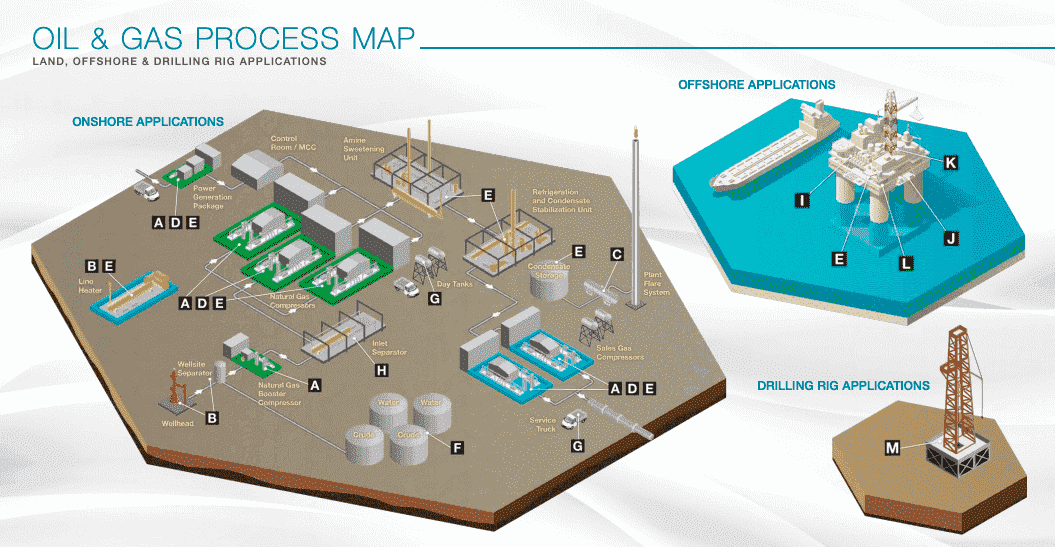

Oil and Gas Process Map

APPLICATIONS KEY:

  • A Lube Oil Transfer (G05, G1F)
  • B Glycol Recirculation/Heat Trace (G05, G1F)
  • C Flare Knockout (G1F, G15, G20, ST1, ST1½)
  • D Glycol Transfer/Water Makeup (G05, G1F)
  • E Sump/General Transfer (G05, G1F, G15, G10F, G20F)
  • F Tank Bottom Recirculation/Transfer (G10F, G20F, G20, G30, GH2-M)
  • G Utility/General Transfer (G05, G1F, G15, G10F, G20F)
  • H Separators & Knockout Drums (G20, GH2-M)
  • I General Duty Spill Cleanup (G20F, G20, G30)
  • J Diesel Fuel Transfer (G15)
  • K Sea Water Pump for Drilling Mud Makeup (G30)
  • L Produced Water/Condensate Transfer (G1F)
  • M Cellar Pump-Out & Mud Transfer (G20, HDF2, HDF3, SMA3)

View the SANDPIPER Oil & Gas Brochure here.

View the SANDPIPER Oil & Gas Process Map Brochure here.

PUMPS FOR UPSTREAM AND MIDSTREAM MARKETS

UPSTREAM

View Pumps

The HDF2 and HDF3 heavy-duty flap valve pumps are compressed air-driven and ideal in the upstream market for cellar sump and mud transfer applications. The flap check valve design allows passage of larger solids than traditional ball valve pumps (ideal for abrasive slurries, suspended /non-suspended solids, and line-size solids in oil and gas pumping applications).

The exclusive bottom discharge porting arrangement provides superior suction lift and eliminates the damage from settling solids in your pump. This heavy-duty pump features thick wall construction for extended wear.

Features & Benefits

  • Flap Check Valves: Ideal for abrasive and viscous fluids, sludge and slurry
  • Solids Handling: Up to 2" (50mm)
  • Bottom Discharge: Gravity assist is ideal for pumping liquids with settling solids and slurry
  • Portable: Safely and easily transported
  • Superior Dry Prime: Dry suction lift up to 24' (7m) of water
  • Bottom Discharge Porting: Eliminate the damage from settling solids in your pump with the exclusive bottom discharge capabilities of our heavy-duty ball valve and heavy-duty flap valve pump lines.

View the HD Flap Brochure here.

MIDSTREAM

View Pumps

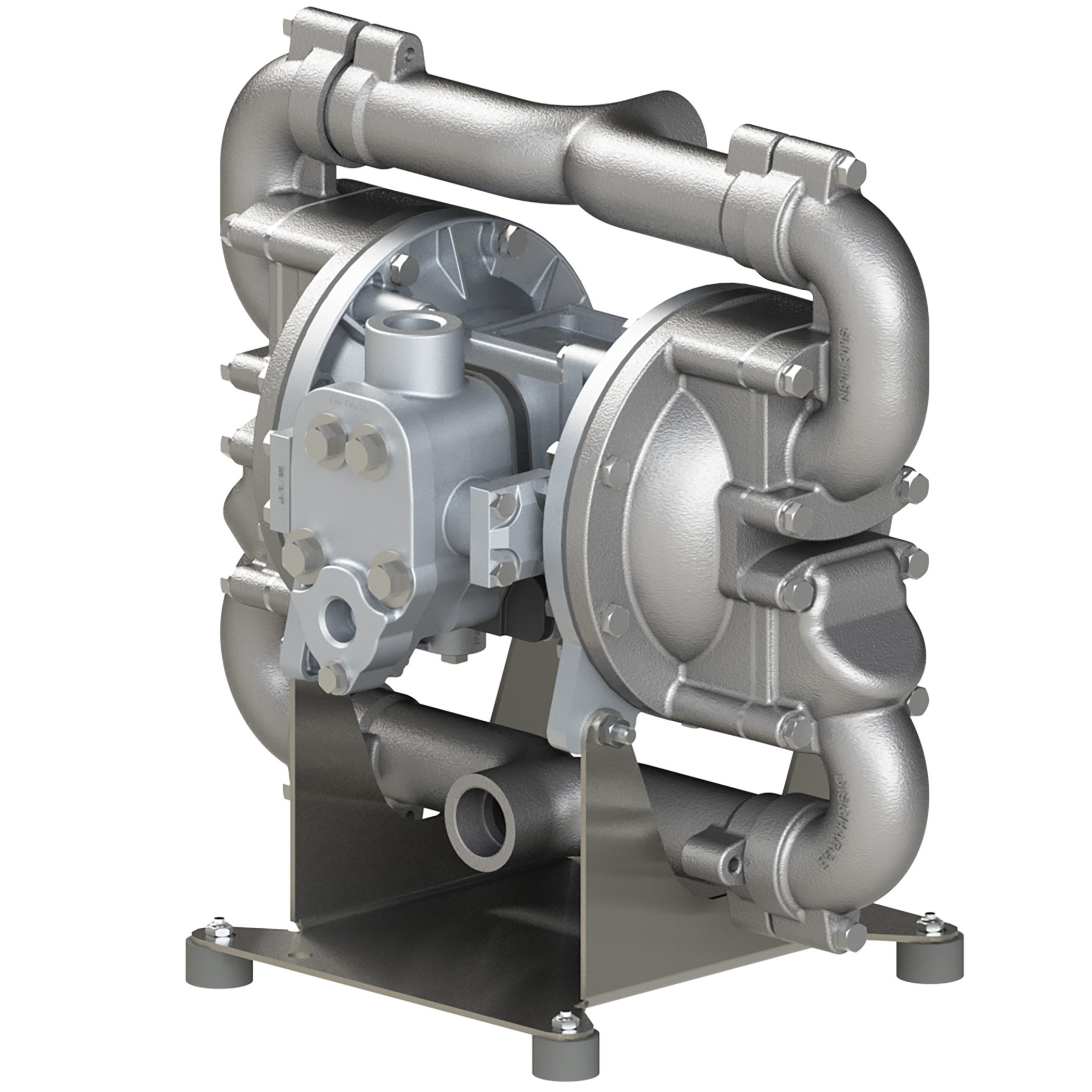

SANDPIPER G-Series pumps are designed for use within midstream applications in the oil and gas market. Our G-Series Dual Power pump line carries the most stringent certifications for safety and reliability for oil and gas applications. SANDPIPER is the only GODD pump manufacturer that offers a full range of CSA Blue Star (ANSI LC6)/Blue Flame (Canadian Technical Letter R-14)-certified pumps from ½" to 3" sizes.

The G-Series pumps offer the broadest range of materials of construction, including aluminum and stainless steel with Buna, FKM, and PTFE elastomer options and in a wide range of sizes (1/2"-3"). This variety of material options allow the G-Series product line to offer NACE-compliant pumps.

Key midstream applications include:

Features & Benefits

  • Safety: SANDPIPER complies with the broadest set of certifications and standards in the industry and is the only GODD pump manufacturer offering a full range of CSA Blue Star (ANSI LC6)/Blue Flame (Canadian Technical Letter R-14) Certified pumps from ½" to 3" sizes.
  • Fully Groundable: Pumps are ATEX compliant and safe in potentially explosive atmospheres by ensuring static electricity dissipation.
  • Dual Power Sources: All SANDPIPER G-Series pumps feature “Dual Power” capabilities and may be safely powered by compressed air or natural gas, which offers simplified purchasing, maintenance and training while reducing inventory. Our G-Series Dual Power pump line carries the most stringent certifications for safety and reliability in the double-diaphragm pump industry.

The Widest Range of Certified Safe & Reliable Natural Gas-Operated Pumps

Blue Flame Technical Letter No. R14Blue Star ANSI LC6ATEXCE logoNACE MR0175ISO15156ABS logo

SANDPIPER Accessories Improve Pump Life

As a leading AODD pump manufacturer, we offer a full range of accessories that make our AODD pumps more efficient and ensure your systems are operating at the highest level possible.

  • CSA-Certified Natural Gas Pressure Regulators
    • Safe, reliable, and environmentally-friendly
    • The only CSA-certified point-of-use natural gas regulators available on the market today
  • Natural Gas Filters
    • For superior particulate protection in systems with high concentrations of solid contaminants
    • Built from durable and lightweight aluminum, featuring very high dirt-holding capacity and offering lower pressure drop than other comparable products

RELIABLE ENGINEERED PUMPING SOLUTIONS FOR THE TOUGHEST OIL & GAS INDUSTRY CHALLENGES


SANDPIPER’s AODD pumps deliver industry-leading durability and performance. Decades of innovation combined with world-class engineering expertise help you achieve your production goals while streamlining your operational efficiency. We offer the broadest range of products for a wide variety of applications. Trust our superior quality and workmanship to deliver reliable solutions for all your critical and demanding pumping needs.

Schedule a Consultation →
