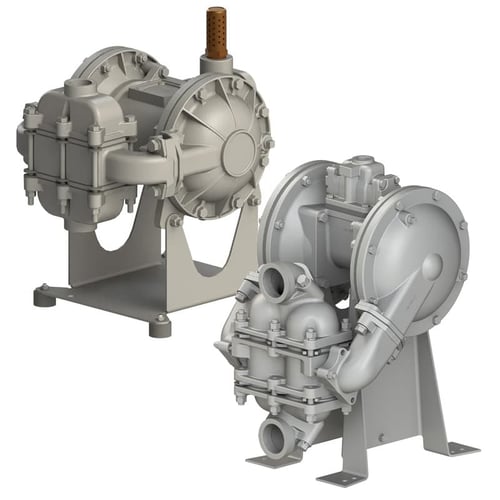

Heavy Duty Ball Pumps, Metallic

Reliable Performance for Suspended, Settling & Floating Solids

When pumping fluids that contain suspended, settling, or floating solids, you need a pump that can handle the variability without clogging, stalling, or wearing out too soon. SANDPIPER’s Heavy Duty Ball Pumps, available in metallic construction, are built to meet the challenge.

These air-operated double-diaphragm (AODD) pumps are part of our Signature Series™, designed to deliver long-lasting performance in demanding environments. Built with multiple porting options and rugged materials, these pumps provide a solution to everything from sludge and slurry to abrasive or viscous fluids, keeping your process efficient and requiring less maintenance.

Key Features:

• Sizes: 1 - 4" (25 - 102 mm)
• Flow: 42 - 300 gpm (159 - 1136 lpm)
• Solids Handling: .25 - .875” (6 - 22 mm)
• Displacement: .9 - 2.0 gallons (.34 - 7.6 L)
• Construction: Aluminum, Cast Iron, Stainless Steel, Alloy C
• Elastomers: (Diaphragms, Check Balls, Seats) Nitrile, Neoprene, Santroprene®, PTFE, Fluorocarbon, Hytrel®, EPDM
• Down-, top-, or side-porting to match your installation and fluid type
• Weighted check balls improve reliability with viscous or variable fluids
• ESADS+Plus air distribution system allows easy in-line maintenance
• Cross-drilled spool valve prevents pump stalling
• Robust diaphragm connecting rod ensures consistent, long-term operation

Weighted Ball Design Meets Heavy-Duty Performance

Unlike flap pumps, ball valve designs use weighted check balls to control flow. This makes the Heavy Duty Ball Pump ideal for:

• Settling solids that need to move without collecting in the pump
• Suspended or floating solids where flexible porting improves evacuation
• Slurries or abrasives where added wear protection is critical

Choose the Right Porting for Your Application

• Top-Ported: Ideal for floating solids, entrained gases, or suspended solids. Reduces build-up and makes evacuation easier.

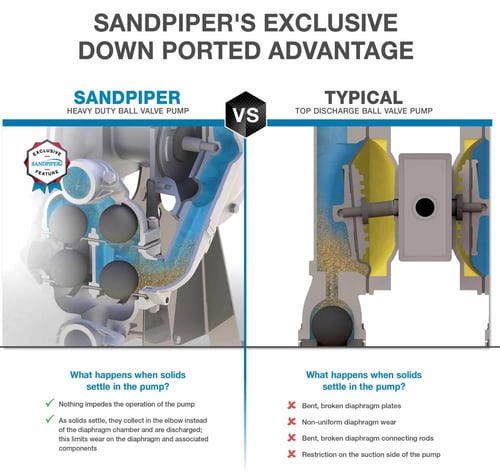

• Down-Ported: Best for settling solids. Solids flow out through the elbow, not the diaphragm chamber.
• Side-Ported (1" and 1½" sizes only): For tight spaces where a compact footprint is needed.
