SSB1 1" (25 mm) & SSB2 2" (50 mm) Metallic Premium FDA AODD – Ball Valve Pumps

    SANDPIPER BOLTED, FDA-COMPLIANT AODD PUMPS

    SANDPIPER’s SSB Premium Food and Drug Administration (FDA)-Compliant Pumps are ideally designed for the ultimate in leak protection and hygienic pumping.

    Ideal for COP (Clean-Out-of Place), SSB pumps are robust, versatile and commonly used in pharmaceutical, cosmetic and food processing applications where leak-free performance is paramount.

    Features of the SSB Series Premium FDA Pumps include:

    • Electropolished stainless steel construction
    • Bolted construction
      • Unique bolt style allows for quick teardown for cleaning and validation
    • Rotatable manifolds
    • Optional leak detection
    • 2" SSB2 is EC 1935 certified

    The SSB Series pumps are commonly used in the following applications:

    • Bio-pharmaceutical drug manufacturing
    • Food processing
      • Dairy: yogurt, ice cream, sour cream, mayonnaise
      • Snack food manufacturing
    • Beverage processing
      • Beer
      • Soda
      • Spirits
      • Wine
    • Cosmetics and skincare
    • Cannabidiol (CBD)

    Performance Guarantees

    Chemical Compatibility Guide

    To determine chemical compatibility with this pump, please refer to our Chemical Compatibility Guide.

    FDA Compliant EC1935 Goblet Fork ISO Logo CE logo

    Specifications

    SSB1

    Port Size 1½" Tri-Clamp
    Capacity 0 to 54 gpm (204 lpm)
    Air Distribution Valve No-lube, no-stall design
    Solids-Handling Up to ¼" (6 mm)
    Heads Up To 125 psi or 289 ft. of water (8.6 bar or 88 meters)
    Displacement/Stroke .09 gallons (.34 liters)
    Max Operating Pressure 100 psi (7 bar)
    Shipping Weight
    Stainless Steel
    Grade 5 Dairy Finish Stainless Steel

    60 lbs (27 kg)
    62 lbs (28 kg)



    SSB2



    Port Size 2" Tri-Clamp
    Capacity 0 to 125 gpm (473 lpm)
    Air Distribution Valve No-lube, no-stall design
    Solids-Handling Up to ¼" (6 mm)
    Heads Up To 125 psi or 289 ft of water (8.6 bar or 88 meters)
    Displacement/Stroke .36 gallons (1.4 liters)
    Max Operating Pressure 125 psi (8.6 bar)



    Performance

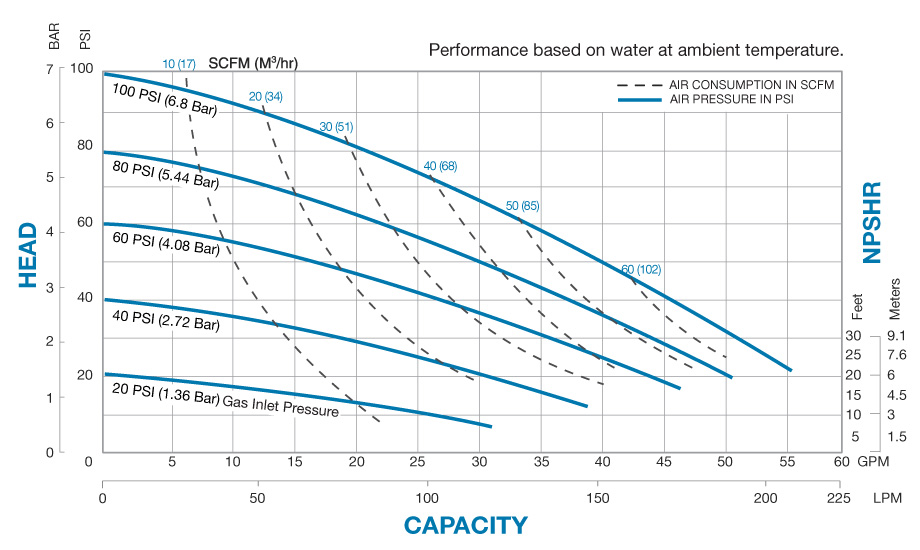

    SSB1

    SSB1-metallic-fda-ball-valve-tri-clamp

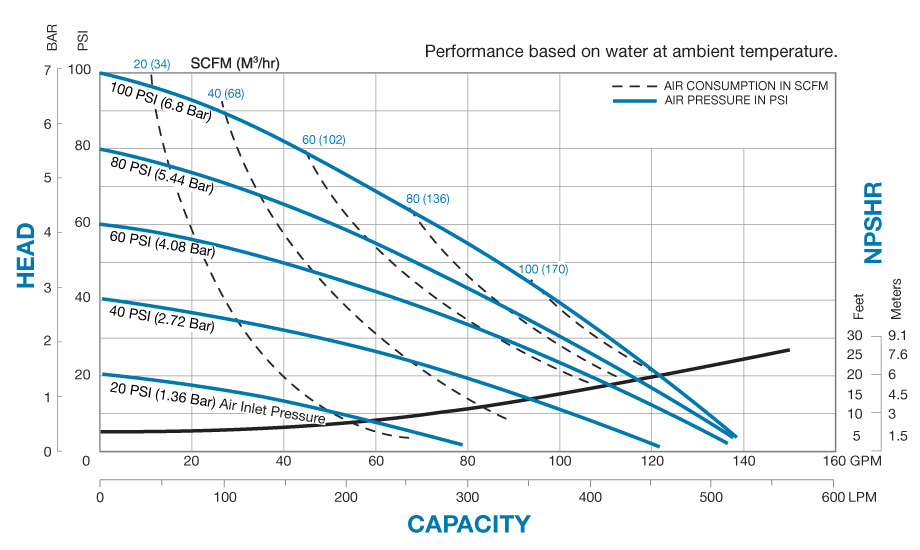

    SSB2

    SSB2-metallic-fda-ball-valve-tri-clamp



    SSB1 & SSB2 CAD Files


    SANDPIPER can provide you with a CAD file to save time and improve the quality of your final design, as well as reduce measurement and documentation packet errors. Contact us today to request yours.
