GH2 Metallic 2" (50 mm) High-Pressure 2:1– Ball Valve Pump

    SANDPIPER NATURAL GAS-OPERATED DIAPHRAGM PUMP

    The SANDPIPER 2" natural gas-operated high-pressure pump offers robust construction for demanding oil and gas applications, such as condensate injection and long discharge runs of pipe.

    Utilizing thick-walled castings in stainless steel and cast iron, SANDPIPER G-Series pumps handle natural gas while allowing for complete groundability. Built to meet CSA standards, the GH2 pump is used extensively in upstream and midstream applications.

    This 2:1 high-pressure pump, with a unique air distribution system, is capable of delivering discharge pressures twice the inlet pressure up to 250 psi (17.2 bar) while achieving up to 74 gpm.

    SANDPIPER’s G-Series pumps carry the following certifications:

    Performance Guarantees

    Chemical Compatibility Guide

    To determine chemical compatibility with this pump, please refer to our Chemical Compatibility Guide.

    SANDPIPER DUAL POWER logo ATEX Blue Star ANSI LC6 Blue Flame Technical Letter No. R14 NACE MR0175ISO15156 ABS logo CE logo ISO Logo

    Specifications

    Max Operating Pressure 250 psi (17 bar)
    Shipping Weight
    Cast Iron
    316 Stainless Steel

    172 lbs (78 kg)
    176 lbs (80 kg)

    Performance

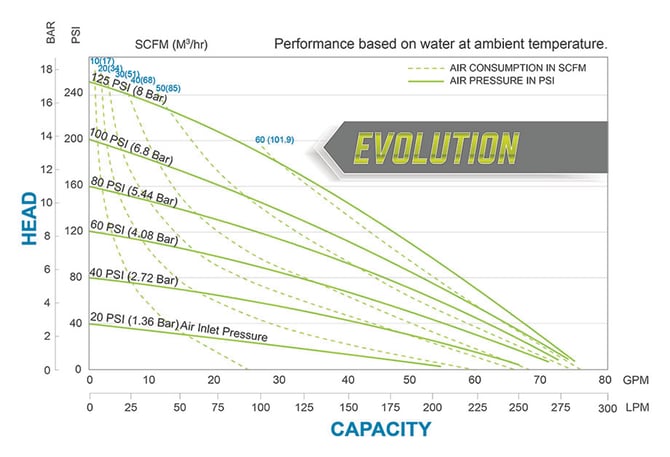

    GH2 Metallic Performance Chart



    GH2 CAD File


    SANDPIPER can provide you with a CAD file to save time and improve the quality of your final design, as well as reduce measurement and documentation packet errors. Contact us today to request yours.
