76 mm (3") Non-Metallic EODD Pump

Keep Your Operations Running Efficiently

The 76 mm (3") Cognito Electric-Operated Double Diaphragm (EODD) Non-Metallic Pump is engineered to deliver exceptional performance for industrial operations. With a 3" port size, it offers high-flow capacity while maintaining the efficiency that Cognito products are known for. The repair in place maintenance design ensures your operations keep running efficiently with less down time.

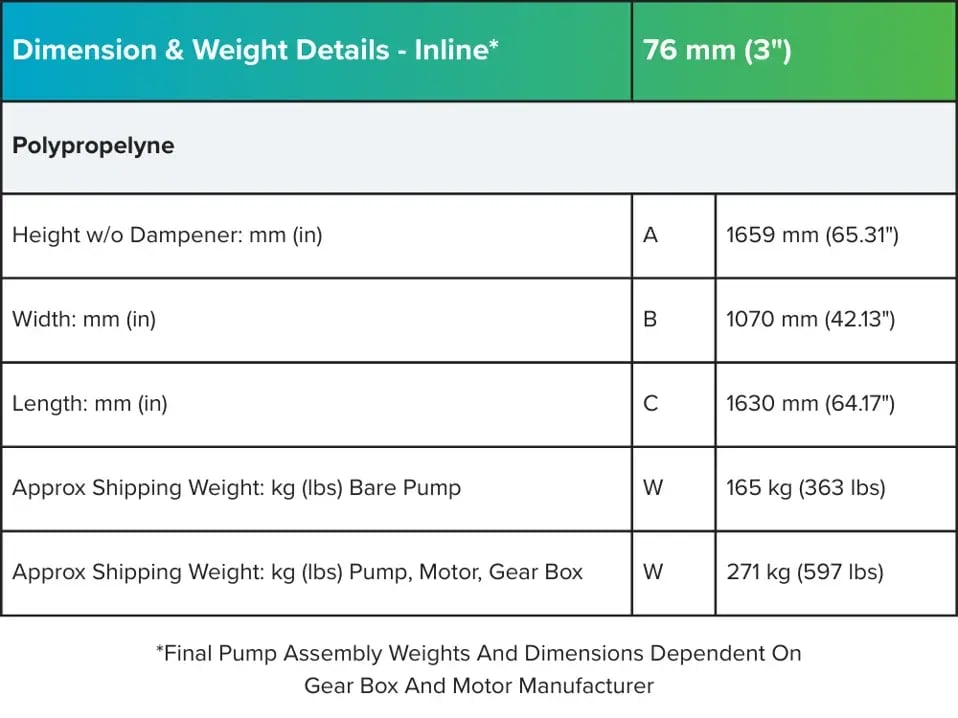

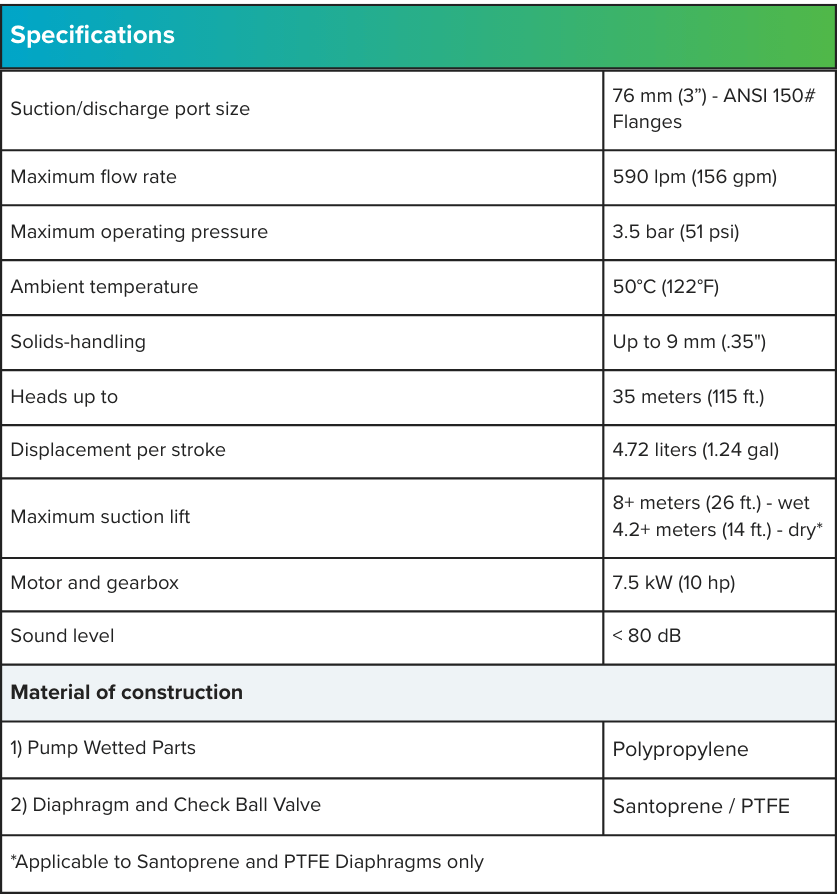

Technical Specifications

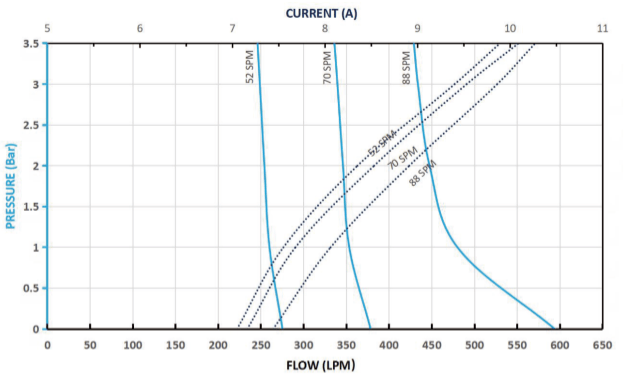

Performance Curve

• Use 10 HP / 7.5 KW motor for above 10 AMPS
• For SPM 85, contact IDEX Team
• The performance curve is based on following: Santoprene elastomer fitted pump, flooded suction, water at ambient conditions 25°C (77°F), with Cognito Dampener
• The performance result may deviate in excess of 5% based on elastomer
• Performance vary based on viscosity

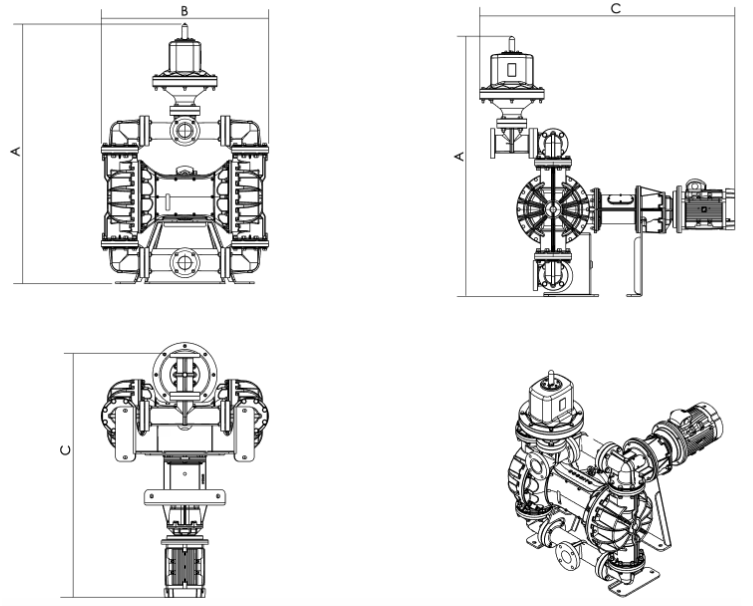

General Arrangement Drawings

Easy Maintenance

Our pumps are designed for easy maintenance to minimize downtime and maximize productivity. See how simple it is to maintain your EODD pump and keep it running smoothly.
