51 mm (2") Non-Metallic EODD Pump

Reduce Maintenance and Downtime

Cognito Electric-Operated Double Diaphragm (EODD) Metallic Pumps are built with a robust mechanism to meet the demands for increased production efficiency and lower total cost of ownership. Our pumps and accessories ensure the smooth handling of various fluids and slurries, making them highly versatile. Their advanced smart technology enables remote connectivity, monitoring, and analysis of your equipment. With Cognito EODD pumps, you can expect higher energy efficiency, quick and easy maintenance, and reduced operational costs.

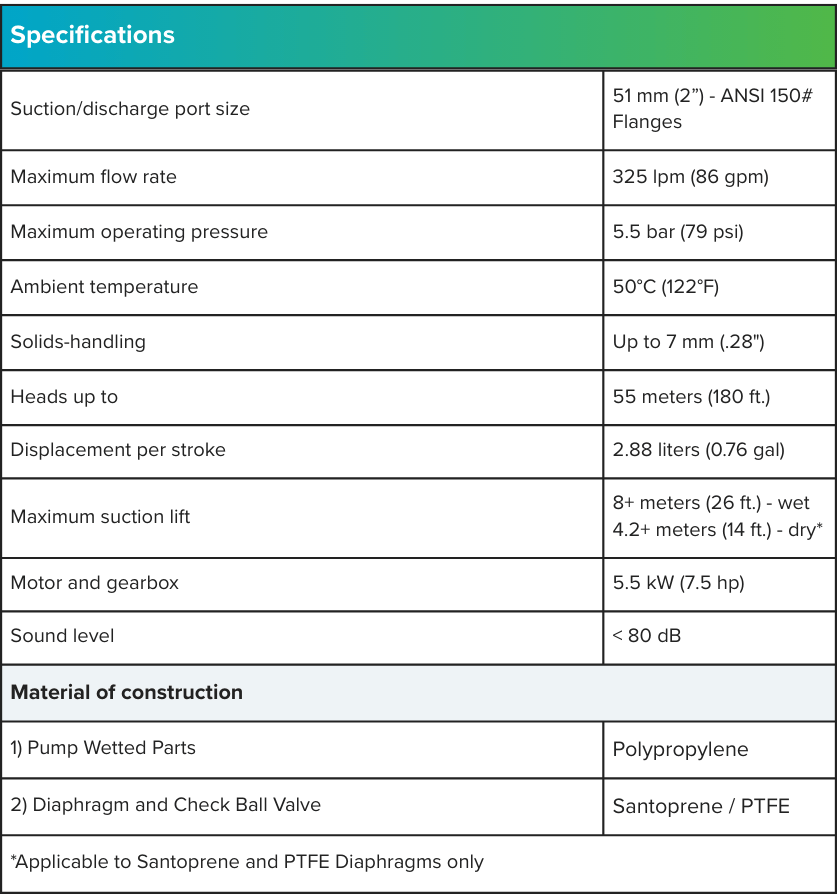

Technical Specifications

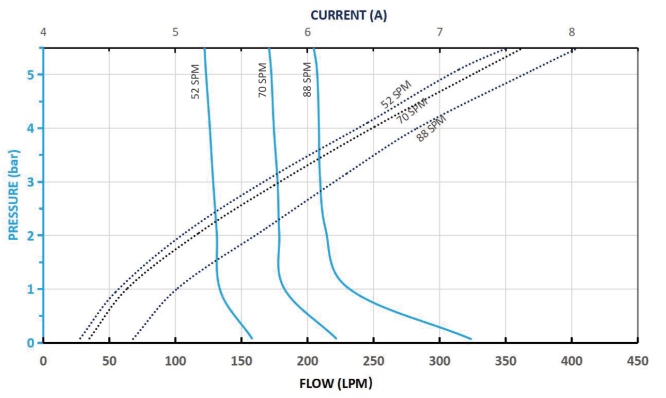

Performance Curve

• Use 7.5 HP / 5.5 KW motor for above 10 AMPS
• For SPM 85, contact IDEX Team
• The performance curve is based on following: Santoprene elastomer fitted pump, flooded suction, water at ambient conditions 25°C (77°F), with Cognito Dampener
• The performance result may deviate in excess of 5% based on elastomer
• Performance vary based on viscosity

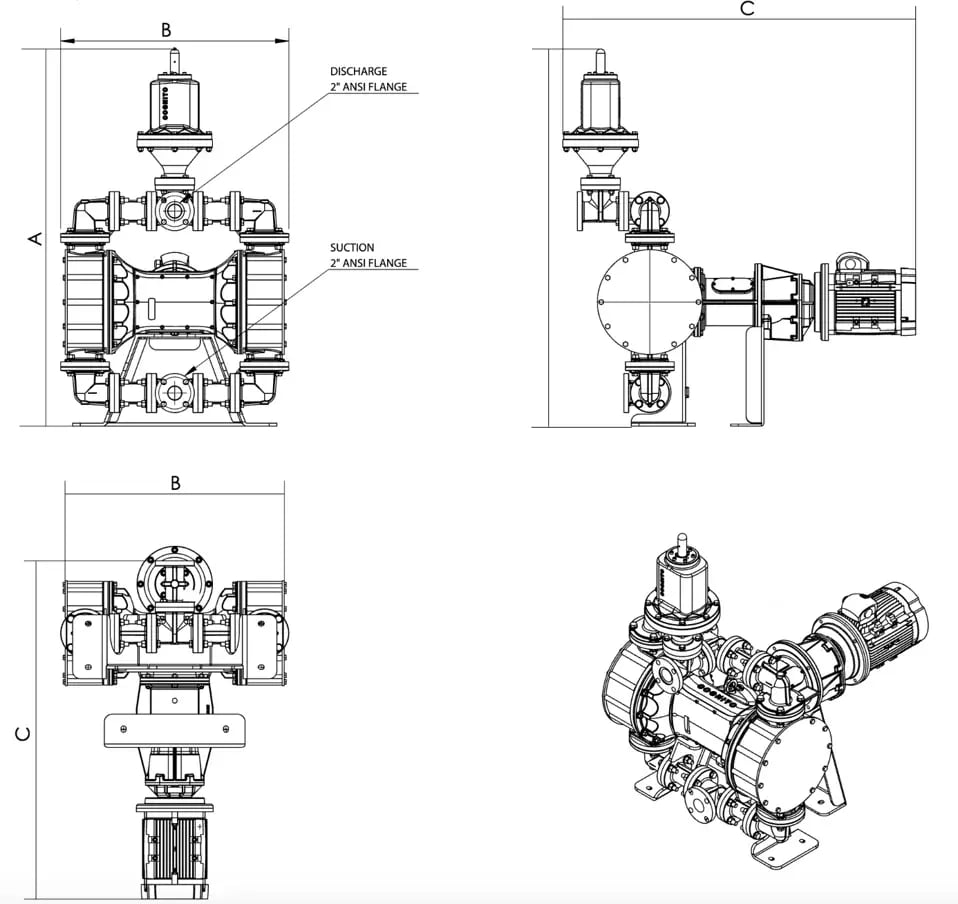

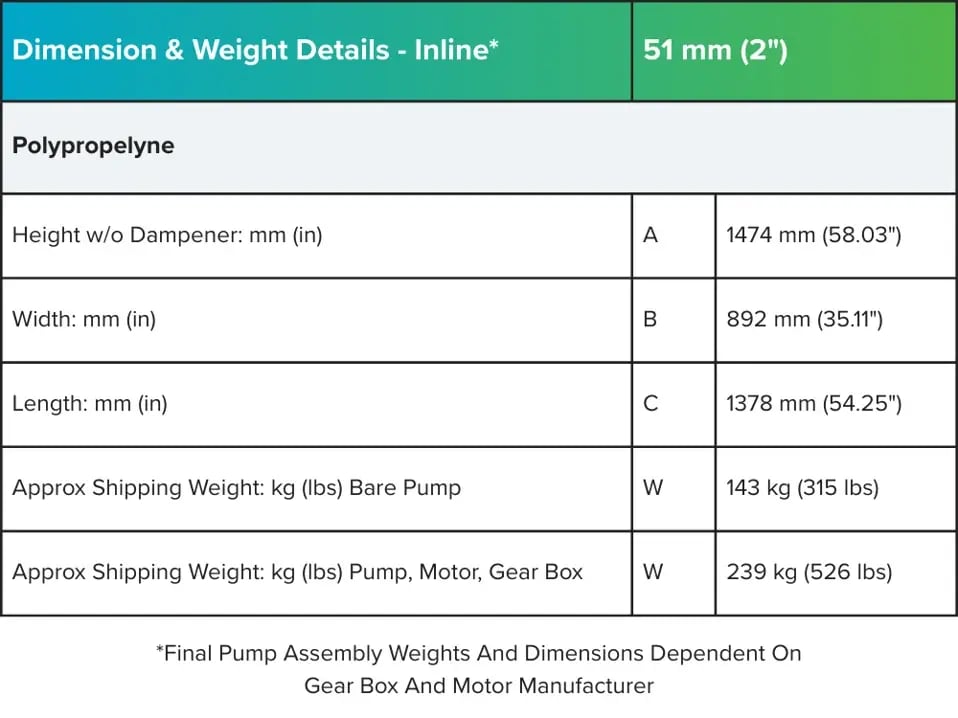

General Arrangement Drawings

Easy Maintenance

Our pumps are designed for easy maintenance to minimize downtime and maximize productivity. See how simple it is to maintain your EODD pump and keep it running smoothly.
